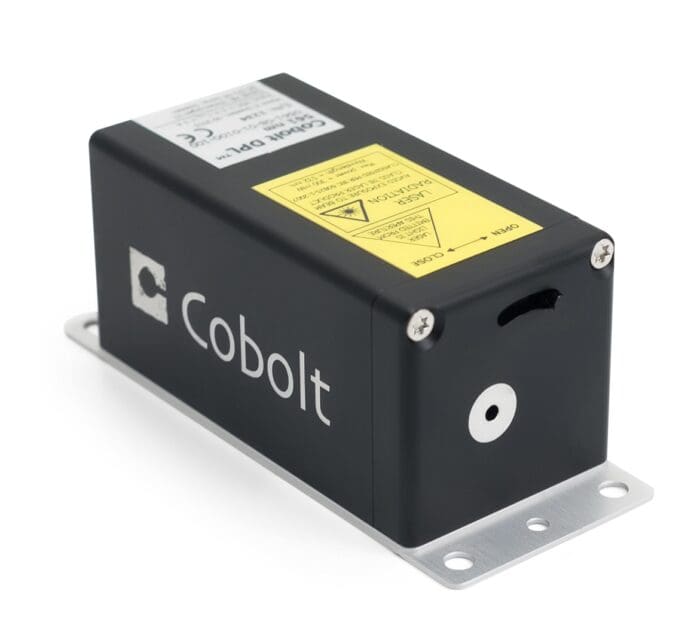

Cobolt 06-01 Series

Plug & play modulated CW lasers

Cobolt 06-01 Series offers lasers over a large wavelength range in a compact plug and play format. The Series consists of high performance fixed wavelength diode laser modules (MLD) and diode-pumped lasers (DPL). High speed direct modulation capability and true off during modulation makes them ideal for applications in bioimaging and quantum technologies.

375 nm – 1064 nm, up to 400 mW
Up to 100 MHz modulation
Fully harmonized electrical interface and industry standard 12 V power supply input
Integrated clean-up filter on all diode wavelengths
Versatile and precise intensity modulation in digital or analog mode with true OFF-state (>70 dB), linear optical response and stable illumination across varying duty cycles
Fiber pigtailed configuration available
Compatible with C-FLEX Laser Combiner
Ultra-robust, proven reliability
24 months warranty and < 2 weeks standard lead time

Applications

Perfect for fluorescence microscopy, super resolution microscopy, flow cytometry, optogenetics, quantum technology

Categories: 1064 nm laser, 375 nm laser, 395 nm laser, 405 nm laser, 415 nm laser, 425 nm laser, 445 nm laser, 457 nm laser, 473 nm laser, 488 nm laser, 505 nm laser, 515 nm laser, 520 nm laser, 532 nm laser, 553 nm laser, 561 nm laser, 594 nm laser, 633 nm laser, 638 nm laser, 647 nm laser, 660 nm laser, 685 nm laser, 690 nm laser, 705 nm laser, 730 nm laser, 760 nm laser, 785 nm laser, 808 nm laser, 830 nm laser, 852 nm laser, 915 nm laser, 940 nm laser, 975 nm laser, Diode Lasers, Lasers Tags: 1064 nm, 375, 395 nm, 405 nm, 405nm, 405nm diode lasers, 445 nm, 445nm diode lasers, 473 nm, 473nm, 473nm diode lasers, 488 nm, 488nm, 488nm diode laser, 515 nm, 515nm diode lasers, 532 nm, 532nm, 532nm DPL, 553 nm, 553nm, 553nm diode pumped laser, 553nm laser, 561 nm, 561nm, 561nm DPL, 633 nm, 633nm, 633nm diode lasers, 638 nm, 638nm, 647 nm, 647nm, 647nm diode lasers, 660 nm, 660nm, 660nm diode lasers, 852 nm, 852nm, blue diode lasers, cobolt 06, cobolt 06 lasers, cobolt 06-01, diode lasers, DPL, lasers for confocal microscopy, lasers for flow cytometry, lasers for fluorescence microscopy, lasers for super resolution microscopy, MLD, modulated diode laser, modulated laser, plug and play, red diode lasers

Specifications

Introducing the 12 V model with completely harmonized electrical interfaces, versatile and precise intensity digital or analog modulation resulting in a linear optical response and stable illumination across varying duty cycles for all wavelengths, also in the green-yellow-orange range. For customers preferring our legacy 5 V model, please ask your sales representative or alternatively state this in your RFQ submission.

*Prices include everything you need to get started for lab use using the 12 V model (CDRH compliant): power supply, key box, cables and even an integrated clean-up filter! (ex shipping/handling)

Fiber coupling options are available for multimode and single mode fibers using FIC-05

	532553561594				405445457473488515						633638647730785
	Cobolt DPL				Cobolt MLD
Center Wavelength (nm)**	532.1	552.8	561.2	593.6	405	445	457	473	488	515	633	638	647	730	785
Wavelength accuracy (nm)	± 0.3				± 5		+3/-7	± 5
Power (mW)	50 100	50 100	50 100	50 100	50 100	50 100	50 100	50 100	50 100	50 100	50	50 100	50 100	30	100

* One DPL laser line at 532nm, 553nm, 561nm or 594 nm can be combined with any 3 of the MLD wavelengths.
The wavelength difference between each line must be at least 15 nm.
** Standard wavelength options listed, additional wavelengths available on request.

[cobolt_table]

Product	Wavelength	Power	Fiber pigtailed option	Price from*
Cobolt 06-MLD	375 nm	70 mW	25 mW	€ 7,050 $ 7,830 £ 5,920
Cobolt 06-MLD	395 nm	120 mW	25 mW	€ 7,200 $ 7,990 £ 6,050
Cobolt 06-MLD	405 nm	150 mW 365 mW	75 mW 150 mW	€ 2,950 $ 3,270 £ 2,480
Cobolt 06-MLD	415 nm	120 mW	60 mW	€ 7,600 $ 8,440 £ 6,380
Cobolt 06-MLD	425 nm	120 mW	60 mW	€ 7,600 $ 8,440 £ 6,380
Cobolt 06-MLD	445 nm	100 mW 400 mW	50 mW 150 mW	€ 5,650 $ 6,270 £ 4,750
Cobolt 06-MLD	457 nm	100 mW 400 mW	50 mW 150 mW	€ 5,200 $ 5,770 £ 4,370
Cobolt 06-MLD	473 nm	100 mW 300 mW	50 mW 150 mW	€ 5,650 $ 6,270 £ 4,750
Cobolt 06-MLD	488 nm	60 mW 100 mW 150 mW 200 mW 300 mW	30 mW 100 mW	€ 4,550 $ 5,050 £ 3,820
Cobolt 06-MLD	505 nm	80 mW	40 mW	€ 6,900 $ 7,660 £ 5,800
Cobolt 06-MLD	515 nm	80 mW 150 mW	40 mW 75 mW	€ 4,900 $ 5,440 £ 4,120
Cobolt 06-MLD	520 nm	80 mW	40 mW	€ 3,200 $ 3,550 £ 2,690
Cobolt 06-DPL	532 nm	25 mW 50 mW 100 mW 200 mW 300 mW 400 mW	25 mW 50 mW 100 mW 200 mW	€ 5,500 $ 5,940 £ 4,620
Cobolt 06-DPL	553 nm	25 mW 50 mW 100 mW	25 mW	€ 5,900 $ 6,110 £ 4,960
Cobolt 06-DPL	561 nm	25 mW 50 mW 100 mW 200 mW	25 mW 50 mW 100 mW	€ 5,900 $ 6,550 £ 4,960
Cobolt 06-DPL	594 nm	50 mW 100 mW 150 mW	-	€ 9,500 $ 10,550 £ 7,980
Cobolt 06-MLD	633 nm	80 mW	-	€ 2,850 $ 3,160 £ 2,390
Cobolt 06-MLD	638 nm	180 mW	80 mW	€ 2,600 $ 2,890 £ 2,180
Cobolt 06-MLD	642 nm	180 mW	80 mW	€ 2,600 $ 2,890 £ 2,180
Cobolt 06-MLD	647 nm	130 mW	60 mW	€ 3,700 $ 4,110 £ 3,110
Cobolt 06-MLD	660 nm	100 mW	50 mW	€ 2,400 $ 2,660 £ 2,020
Cobolt 06-MLD	685 nm	40 mW	20 mW	€ 2,700 $ 3,000 £ 2,270
Cobolt 06-MLD	690 nm	200 mW	75 mW	€ 4,600 $ 5,110 £ 3,860
Cobolt 06-MLD	705 nm	30 mW	15 mW	€ 3,350 $ 3,720 £ 2,810
Cobolt 06-MLD	730 nm	50 mW	20 mW	€ 3,400 $ 3,770 £ 2,860
Cobolt 06-MLD	760 nm	25 mW	15 mW	€ 4,800 $ 5,330 £ 4,030
Cobolt 06-MLD	785 nm	250 mW	100 mW	€ 2,900 $ 3,220 £ 2,440
Cobolt 06-MLD	808 nm	120 mW	50 mW	€ 3,300 $ 3,660 £ 2,770
Cobolt 06-MLD	830 nm	250 mW	100 mW	€ 3,450 $ 3,830 £ 2,900
Cobolt 06-MLD	852 nm	50 mW	20 mW	€ 2,530 $ 2,810 £ 2,130
Cobolt 06-MLD	915 nm	250 mW	100 mW	€ 3,200 $3,550 £ 2,690
Cobolt 06-MLD	940 nm	250 mW	75 mW	€ 3,300 $ 3,660 £ 2,770
Cobolt 06-MLD	975 nm	250 mW	50 mW	€ 3,100 $ 3,440 £ 2,600
Cobolt 06-MLD	1064 nm	200 mW	75 mW	€ 3,250 $ 3,610 £ 2,730

*Please note that Local currency may change. Shipping, tax etc. is not included in the displayed price. Displayed pricing denotes lowest power model.

Performance Data (click to enlarge)

	532553561594				405445457473488515						633638647730785
	Cobolt DPL				Cobolt MLD
Center Wavelength (nm)**	532.1	552.8	561.2	593.6	405	445	457	473	488	515	633	638	647	730	785
Wavelength accuracy (nm)	± 0.3				± 5		+3/-7	± 5
Power (mW)	50 100	50 100	50 100	50 100	50 100	50 100	50 100	50 100	50 100	50 100	50	50 100	50 100	30	100

* One DPL laser line at 532nm, 553nm, 561nm or 594 nm can be combined with any 3 of the MLD wavelengths. The wavelength difference between each line must be at least 15 nm.
** Standard wavelength options listed, additional wavelengths available on request.

Data Sheets

Datasheet Cobolt 06-01 Series 12 V lasers

Datasheet Cobolt 06-01 Series legacy 5 V lasers

Manuals

Manual Cobolt 06-01 Series 12 V lasers

Manual Cobolt 06-01 Series legacy 5 V lasers

Literature (see also applications specific pages)

Read our latest customer publications!

References	Application	Publication
Technology leaps in quantum sensing	Quantum sensing	White paper
B. Kemper Digital holographic microscopy PhotonicsViews 2020	Digital holographic microscopy	Photonics Views Magazine Jan 2020
TRAST microscopy for measuring oxygen concentration	Microscopy	Application note
Digital Holographic Microscopy for Label-Free Detection of Leukocyte Alternations Associated with Perioperative Inflammation after Cardiac Surgery	Digital holographic microscopy	Cells 2022
Label-Free Digital Holographic Microscopy for In Vitro Cytotoxic Effect Quantification of Organic Nanoparticles	Digital holographic microscopy	Cells 2022

Software

	Software	Description
	Cobolt Monitor	Cobolt Monitor^TM is a combined GUI for all Cobolt laser models. The GUI supports simultaneous connection and monitoring of multiple lasers, configured for either RS232 or USB2.0. The GUI automatically searches for new Cobolt lasers connected to the computer and presents them listed.
	USB Driver	To connect to the laser via USB, the USB driver must be installed. When installed, a virtual COM port will be created to communicate with the laser.
	Lab View	Use to integrate the Cobolt lasers into Lab view environment.
	GitHub	See a list of suggested code in C++ or Python on GitHub.
	Integration into imaging software r	A Micro-manager driver is available for Cobolt 06-01 lasers. Please search for and install the “Cobolt Official” driver from the Micro-manager library. The driver is optimized for Cobolt 06-01 Series lasers manufactured after June 2020 but also back-compatible with lasers manufactured before then.If you experience any difficulties with your Micromanager integration, please contact us at: info@coboltlasers.com.

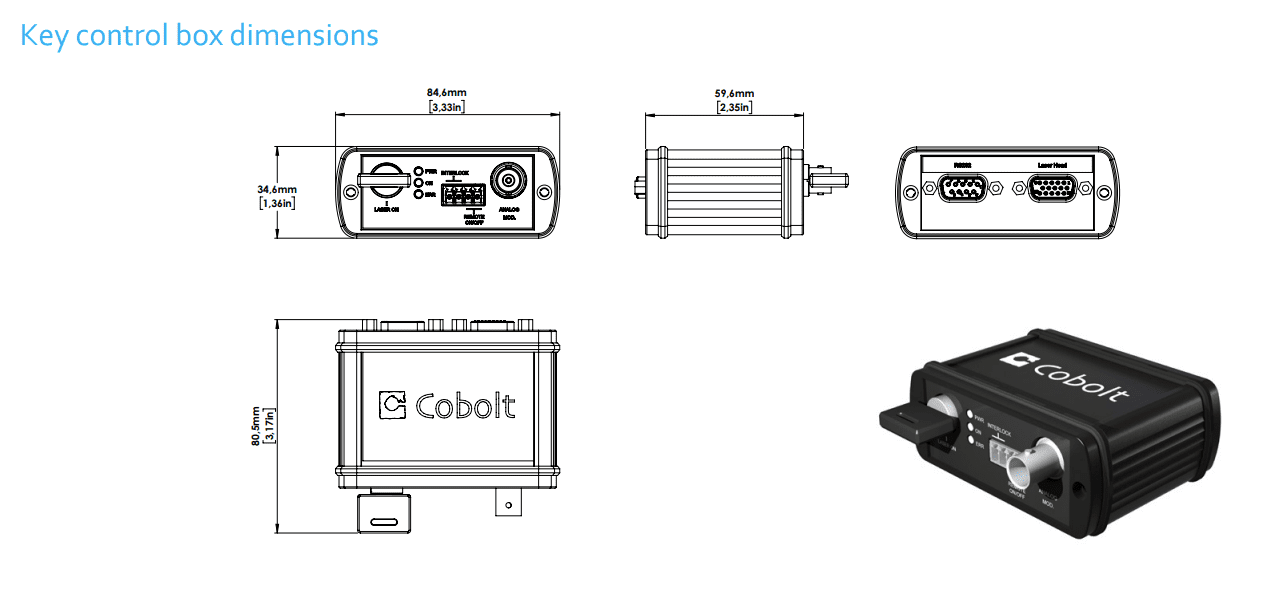

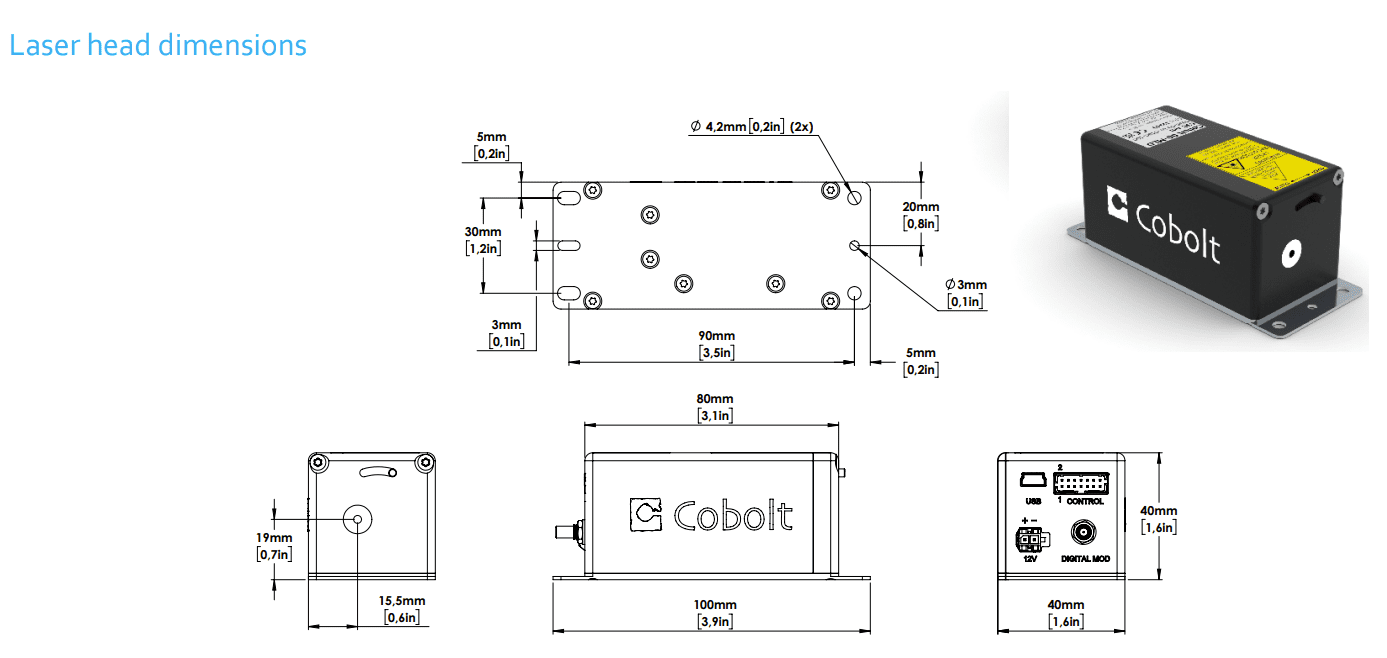

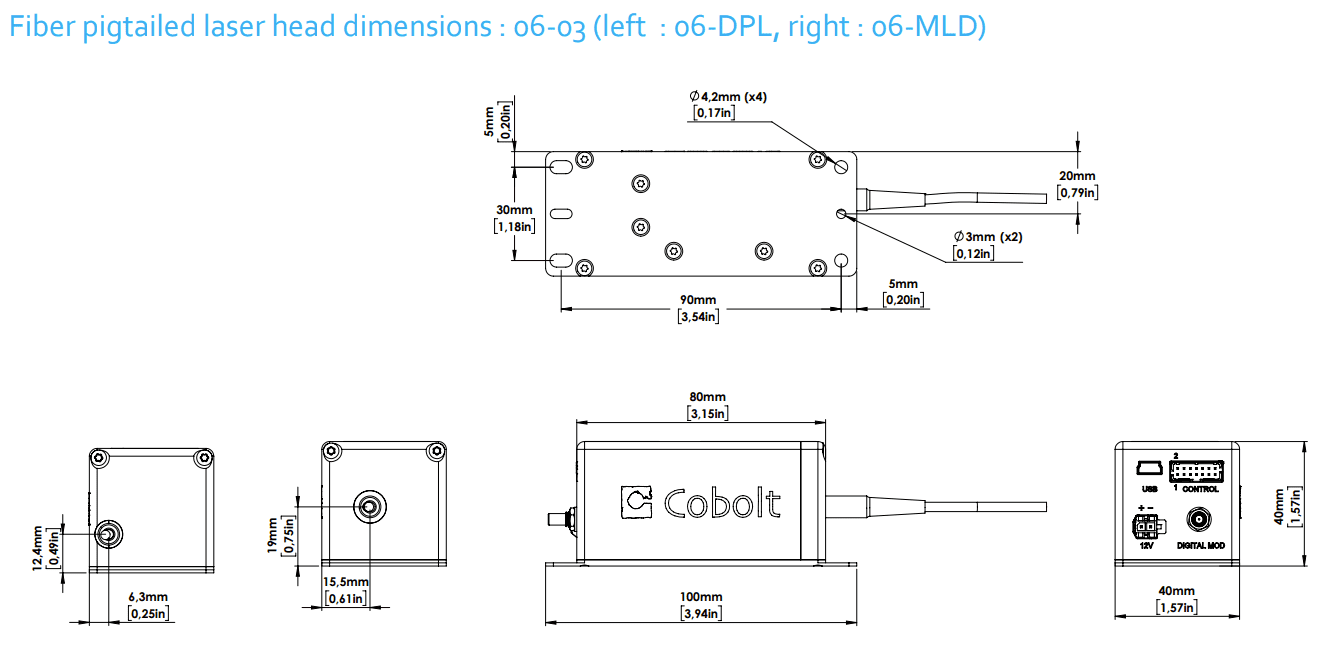

Mechanical specifications (click to enlarge)

Click here to register and download the Cobolt 06-01 CAD drawing (.STEP file)

Browse through our dedicated playlists

Options & Accessories


Cobolt FIC-05	HS-03 Laser Head Heatsink	Cobolt TEC-plate
Mounting plate for fiber coupling	Heatsink without fans	Temperature controlled mounting plate

See more options and accessories
